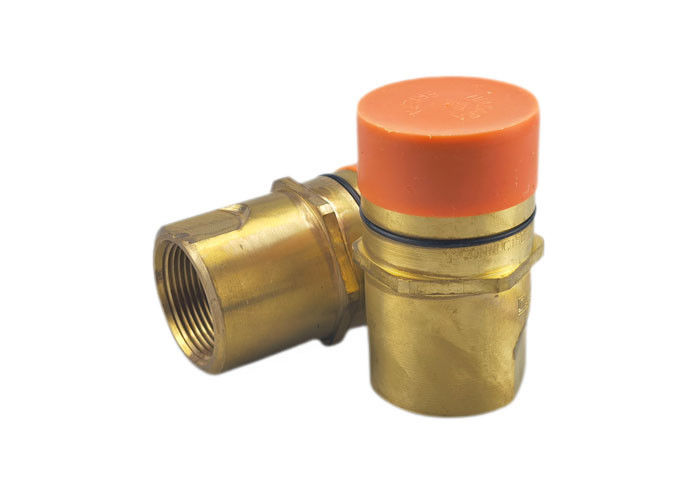

0.75'' Threaded Quick Connect

0.75'' Threaded Quick Connect

0.75'' Threaded Quick Connect

IATF 16949 Threaded Quick Connect

NBR hydraulic quick disconnect fittings

Lugar de origen:

Shanghái, China

Nombre de la marca:

carterberg

Certificación:

IATF16949

Número de modelo:

CB-5

Contacta con nosotros
Solicitar una cita
Detalles del producto
El material:
Acero al carbono/acero inoxidable
Presión nominal:
3000
El hilo:
Mujeres
Técnicas:
el machinning
El tamaño:
3/4, 1, 1-1/4
Temperatura:
-20°C a +120°C
Material de sellado estándar:
El NBR
Compatible con:
La serie 6100 de PARKER, la serie FB FASTER, la serie 5100 de AEROQUIP y la serie 96 de HANSEN
Resaltar:

0.75'' Threaded Quick Connect

,

IATF 16949 Threaded Quick Connect

,

NBR hydraulic quick disconnect fittings

Términos de pago y envío
Cantidad de orden mínima
Negociación
Precio
Negociable
Detalles de empaquetado
En cartón
Tiempo de entrega
7-20 días hábiles
Condiciones de pago
Los datos de las transacciones se pueden obtener mediante el formulario L/C, D/A, D/P, T/T, Western
Capacidad de la fuente
5000~20000 pc/month
Descripción del Producto

Compatible with HANSEN 96 series Brass Thread type hydraulic quick coupling



CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Applications

Applications needing connection or disconnection under pressure, with low fluid loss (flat-faced valves). Fuel industry, tractor-trailer connections



Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Double shut-off couplings, dry-break (flat-face valves)
  2. Wing-nut screw-to-connect mechanism
  3. Connection under pressure possible due to the bonded valve seals
  4. Minimum air inclusion during connection
  5. Interchanges with other makes of couplings with the same profile
  6. Compatible with PARKER 6100 series, FASTER FB series, AEROQUIP 5100 series, HANSEN 96 series.

0.75'' Threaded Quick Connect 0

Body Size PARTNO. Thread A B HEX
3/4" CB-S6B-5FN-A 3/4-14 79 103 29,2
1" CB-S8B-5FN-A 1-11 1/2 96 113 36,6
1"1/4 CB-S10B-5FN-A 1-1/4 101 132 45,2

0.75'' Threaded Quick Connect 1

Body Size PARTNO. Thread C D HEX
3/4" CB-P6B-5FN-A 3/4-14 79 38 33,3
1" CB-P8B-5FN-A 1-11 1/2 90 47,5 39,6
1"1/4 CB-P10B-5FN-A 1-1/4 94 53,8 47,8
