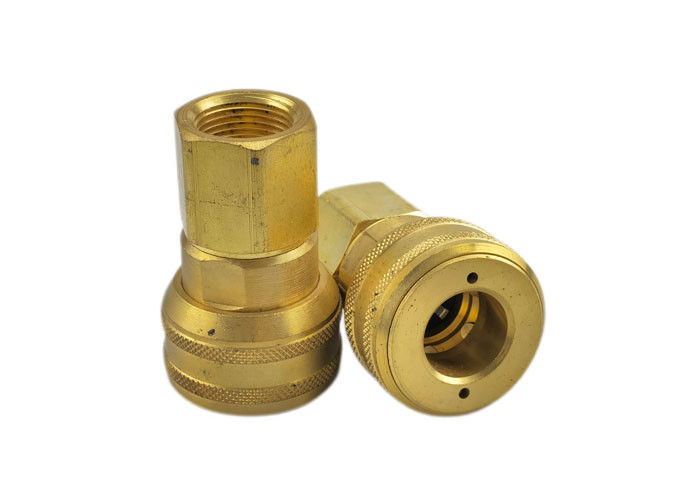

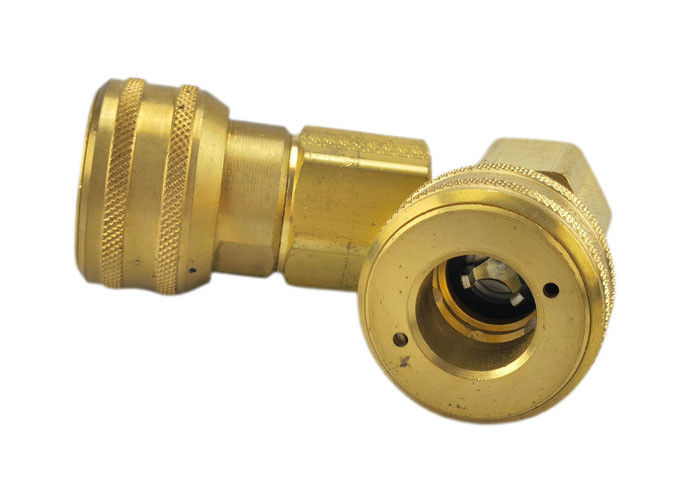

0.25 Inch Threaded Quick Connect , Brass Quick Release Coupling

0.25 Inch Threaded Quick Connect , Brass Quick Release Coupling

0.25'' Threaded Quick Connect

brass Threaded Quick Connect

NBR brass quick release coupling

Lugar de origen:

Shanghái, China

Nombre de la marca:

carterberg

Certificación:

IATF16949

Número de modelo:

CB-5

Contacta con nosotros
Solicitar una cita
Detalles del producto
El material:
Acero al carbono/acero inoxidable
Presión nominal:
34,5 MPa
El hilo:
Mujeres
Técnicas:
el machinning
El tamaño:
1 / 4 y 1 / 4
Temperatura:
-20°C a +120°C
Material de sellado estándar:
El NBR
Compatible con:
Serie GROMELLE 6000 y serie HOLMBURY TGW
Resaltar:

0.25'' Threaded Quick Connect

,

brass Threaded Quick Connect

,

NBR brass quick release coupling

Términos de pago y envío
Cantidad de orden mínima
Negociación
Precio
Negociable
Detalles de empaquetado
En cartón
Tiempo de entrega
7-20 días hábiles
Condiciones de pago
Los datos de las transacciones se pueden obtener mediante el formulario L/C, D/A, D/P, T/T, Western
Capacidad de la fuente
5000~20000 pc/month
Descripción del Producto

Thread locked type hydraulic quick coupling Threaded Quick Connect



0.25 Inch Threaded Quick Connect , Brass Quick Release Coupling



Features

  1. Double shut-off couplings
  2. Locking by screwing the socket sleeve-nut on to the male-threaded plug. This gives the coupling resistance to heavy mechanical demands (ram loads, hydraulic shocks, severe pulsating pressures, etc.).
  3. Can be connected against residual pressure
  4. Dust caps and plugs
  5. Compatible with GROMELLE 6000 Series and HOLMBURY TGW series.

Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module D1 of the European Pressure Equipment Directive 97/23 EC. They should not be used to convey volatile gases.

Applications

All industrial and severe applications.Public works, offshore, lifting equipment, systems subject to heavy mechanical loads, high pressures

CB-5 Series couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.



Standard Materials

  • zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

0.25 Inch Threaded Quick Connect , Brass Quick Release Coupling 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2S-5FN 1/4-18 53 35 19
1/4" CB-S2S-5FG 1/4-19 53 35 19
3/8" CB-S3S-5FN 3/8-18 65 38 23
3/8" CB-S3S-5FG 3/8-19 65 38 23
1/2" CB-S4S-5FN 1/2-14 74 45 27
1/2" CB-S4S-5FG 1/2-14 74 45 27
3/4" CB-S6S-5FN 3/4-14 91 55 35
3/4" CB-S6S-5FG 3/4-14 91 55 35
1" CB-S8S-5FN 1-11 1/2 103 69 41
1" CB-S8S-5FG 1-11 103 69 41

0.25 Inch Threaded Quick Connect , Brass Quick Release Coupling 1

Body Size PARTNO. Thread C D HEX
1/4" CB-P2S-5FN 1/4-18 35 15 19
1/4" CB-P2S-5FG 1/4-19 35 15 19
3/8" CB-P3S-5FN 3/8-18 42 19 23
3/8" CB-P3S-5FG 3/8-19 42 19 23
1/2" CB-P4S-5FN 1/2-14 50 22 27
1/2" CB-P4S-5FG 1/2-14 50 22 27
3/4" CB-P6S-5FN 3/4-14 63 29 35
3/4" CB-P6S-5FG 3/4-14 63 29 35
1" CB-P8S-5FN 1-11 1/2 71 36 41
1" CB-P8S-5FG 1-11 71 36 41
