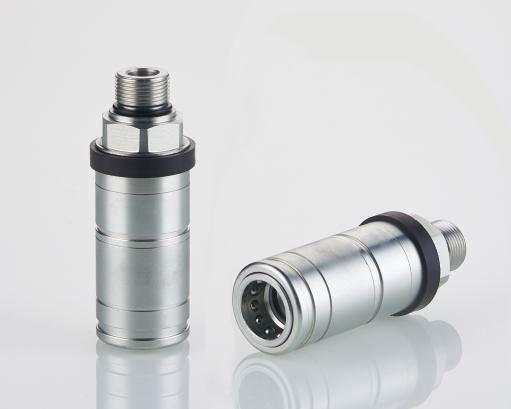

Name: CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-205
Availability: InStock

En casa > productos > acoplamientos rápidos hidráulicos >

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

Lugar de origen:

Porcelana

Nombre de la marca:

carterberg

Certificación:

IATF16949

Número de modelo:

CB-205

Contacta con nosotros

Solicitar una cita

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

Detalles del producto

Tipo:

Se aplican los siguientes requisitos:

Material:

acero zincado, acero inoxidable

Tamaño:

1/4'-1'

Presión nominal:

hasta 2900 PSI ((20 MPa)

Materiales para selladores:

Se aplicará el método de ensayo de la norma de la NBR (norma), Viton, EPDM (opcional)

Conexión:

Enchufe y zócalo

Válvulas:

Balón / muñeca

Intercambio:

Compatible con Parker 6600, ANV más rápido, serie Stucchi A, etc.

Términos de pago y envío

Cantidad de orden mínima

Negociación

Precio

Negociable

Detalles de empaquetado

Caja de cartón

Tiempo de entrega

7-20 días de trabajo

Condiciones de pago

L/C, D/A, D/P, T/T, Western Union

Capacidad de la fuente

5000 ~ 20000 PC/mes

Productos relacionados

CB-VVS Steel thread locked type chrome plating hydraulic quick coupling

Obtenga el mejor precio

CB-VF Steel Hydraulic Quick Coupling Poppet Valves Oil & Construction Equipment

Obtenga el mejor precio

CB-10M Series Hydraulic Quick Couplings - ISO 7241-A Compliant & Leak-Proof for Industrial Use

Obtenga el mejor precio

ISO Series Hydraulic Quick Couplings - Durable & Leak-Proof for Construction & Industrial Use

Obtenga el mejor precio

Contacta con nosotros

86-021-37214610

Contacta ahora

Descripción del Producto

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

The CB-205 Series hydraulic quick couplings are engineered for heavy-duty applications in construction, forestry, and hydraulic machinery. Featuring a double-acting sleeve for one-handed push-to-connect operation, they ensure efficient coupling even in clamp or bulkhead mounts. Equipped with poppet valves to prevent uncoupled leakage, these couplings maintain automatic flow within rated pressure for uninterrupted performance. Critical hardened components enhance durability, while ISO5675 compliance guarantees reliability. Compatible with PARKER 4250 and FASTER CPV-CNV Series, they offer seamless integration into existing systems. Ideal for demanding industrial environments, these couplings prioritize safety, ease of use, and robust performance.

Technical Specifications

BODY SIZE	Rated Pressure (PSI)	Rated Flow (GPM)	Temperature range(std seals)	Standard seal material
1/2"	3000	12	-20℃~+80℃	NBR

Dimensional Overview

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry 0

Body Size	PARTNO.	LS	Φ D	HS	A	T
1/2"	CB-205	111	38	32	23.8	BSP1/2 NP T1/2
