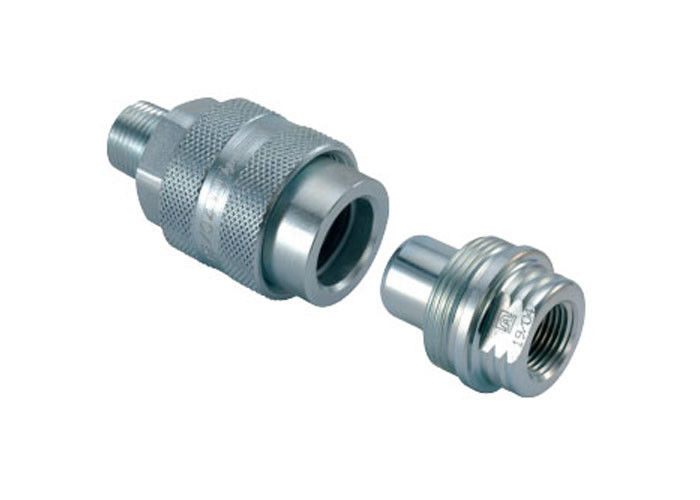

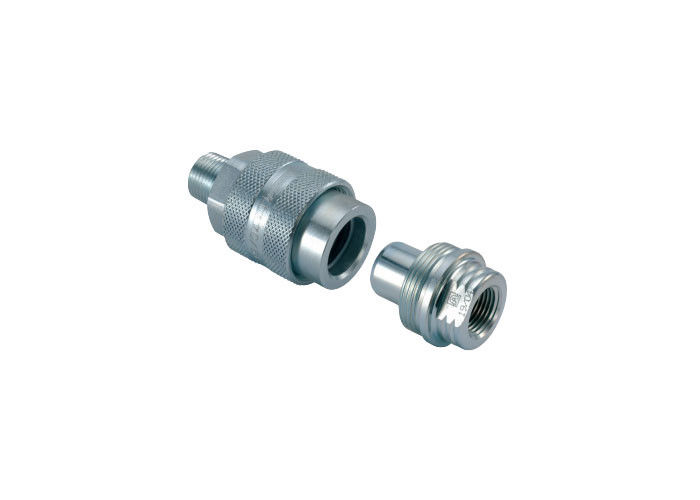

Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling

Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling

5000psi Threaded Quick Connect

0.75'' Threaded Quick Connect

Zinc hydraulic quick release coupling

Lugar de origen:

Shanghái, China

Nombre de la marca:

carterberg

Certificación:

IATF16949

Número de modelo:

CB-5

Contacta con nosotros
Solicitar una cita
Detalles del producto
El material:
Acero zincado
Presión nominal:
5000
Mecanismo de bloqueo:
con rosca
Técnicas:
el machinning
El tamaño:
3/4, 1, 1-1/4
Temperatura:
-20°C a +120°C
Material de sellado estándar:
El NBR
Compatible con:
Las series HANSEN W-56000
Resaltar:

5000psi Threaded Quick Connect

,

0.75'' Threaded Quick Connect

,

Zinc hydraulic quick release coupling

Términos de pago y envío
Cantidad de orden mínima
Negociación
Precio
Negociable
Detalles de empaquetado
En cartón
Tiempo de entrega
7-20 días hábiles
Condiciones de pago
Los datos de las transacciones se pueden obtener mediante el formulario L/C, D/A, D/P, T/T, Western
Capacidad de la fuente
5000~20000 pc/month
Descripción del Producto

Hydraulic jacks, clamping systems, lifting and emergency release equipment applications Threaded Quick Connect



As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.



CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Applications

Hydraulic jacks, clamping systems, lifting and emergency release equipment,



Standard Materials

  • Zinc-plated steel
  • Seals: NBR, Viton, EPDM

Features

  1. Double shut-off couplings, with poppet or ball valving
  2. Locking by screwing the socket sleeve-nut on to the male-threaded plug
  3. Dust caps and plugs
  4. Interchange with other makes of couplings with the same profile
  5. Compatible with HANSEN W-56000 & HP3 series.

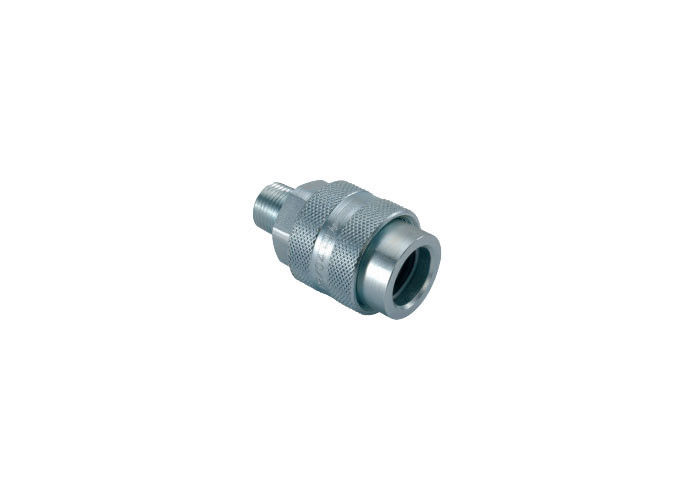

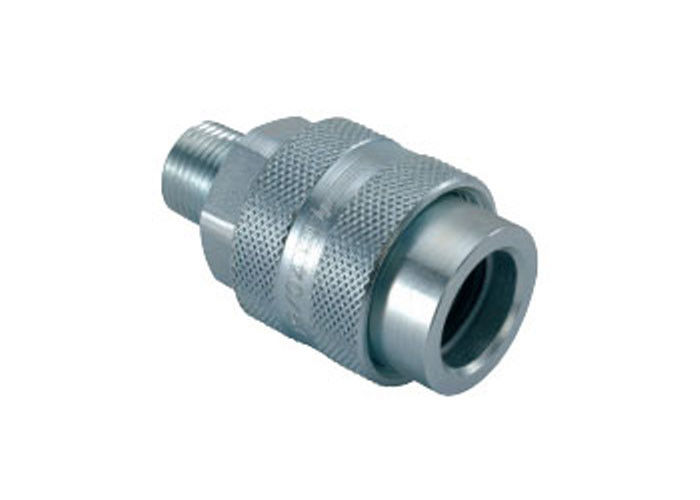

Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2S-5MN-C 1/4 NPT 60 28,5 22
3/8" CB-S3S-5MN-C 3/8 NPT 70 35 27

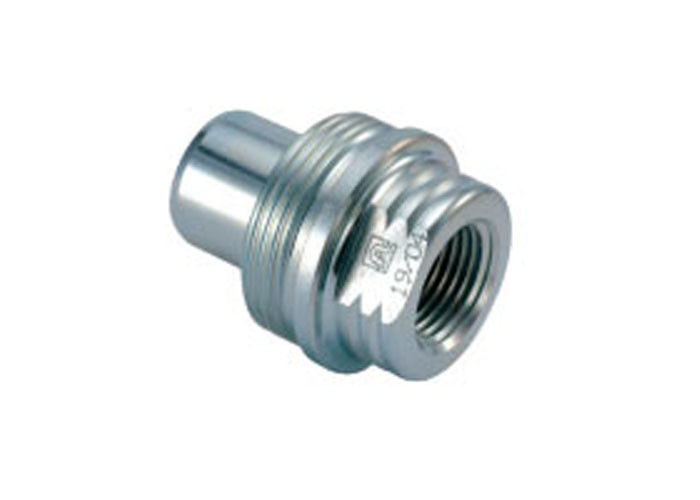

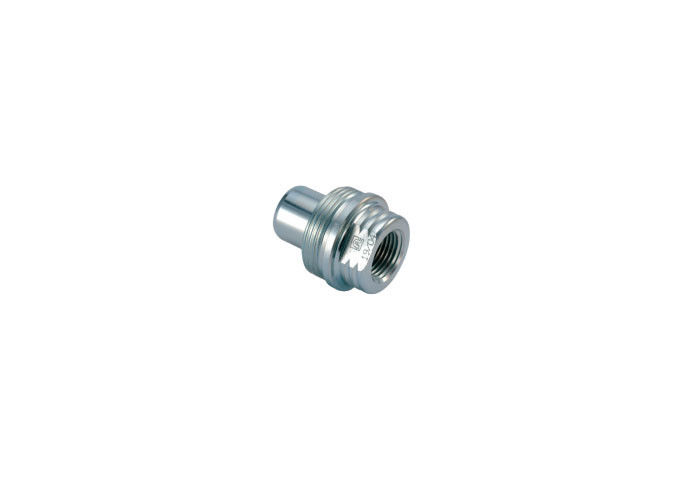

Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling 1

Body Size PARTNO. Thread C D HEX
1/4" CB-P2S-5MN-C 1/4 NPT 35 15,9 19
3/8" CB-P3S-5MN-C 3/8 NPT 42 19 23



Our Services:



1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
