ISO 5676 Close Type Hydraulic Quick Coupling Carbon Steel Material 3000PSI

ISO 5676 Close Type Hydraulic Quick Coupling Carbon Steel Material 3000PSI

3000PSI Stainless Steel Quick Release Couplings

Carbon Steel Hydraulic Quick Connect

ISO5676 Close Type Hydraulic Quick Connect

Lugar de origen:

Shanghái, China

Nombre de la marca:

carterberg

Certificación:

IATF16949

Número de modelo:

CB-4

Contacta con nosotros
Solicitar una cita
Detalles del producto
El material:
Acero de carbono
Estándar:
ISO5676
Presión nominal:
3000psi
Flujo nominal:
12 GPM
Temperatura:
-20 ℃ ~ 120 ℃
El tamaño:
el 1/2
Material del sello:
El NBR
Compatible con:
La serie VF más rápida. La serie GROMELLE Q-9000
Resaltar:

3000PSI Stainless Steel Quick Release Couplings

,

Carbon Steel Hydraulic Quick Connect

,

ISO5676 Close Type Hydraulic Quick Connect

Términos de pago y envío
Cantidad de orden mínima
Negociación
Precio
Negociable
Detalles de empaquetado
En cartón
Tiempo de entrega
7-20 días hábiles
Condiciones de pago
Los datos de las transacciones se pueden obtener mediante el formulario L/C, D/A, D/P, T/T, Western
Capacidad de la fuente
5000~20000 pc/month
Descripción del Producto

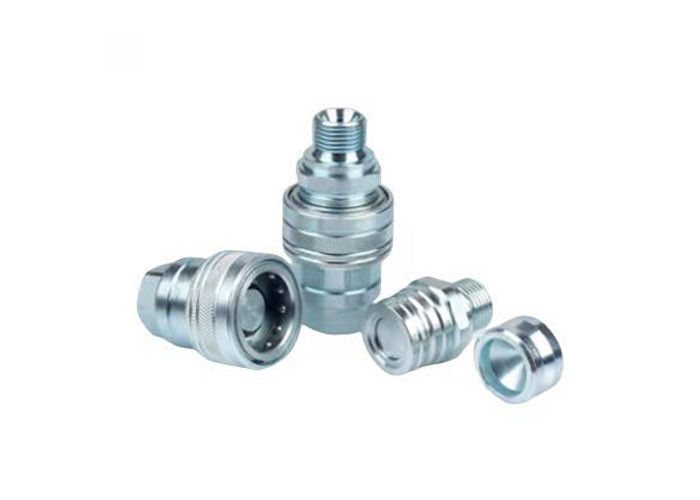

ISO 5676 close type hydraulic quick coupling(steel)

Applications: The coupling brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.



Specifications:

Body Size(in) 1/2
Rated Pressure(PSI) 3000
Rated Flow(GPM) 12
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



Features

1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socked and plug are precision machined from solid bar stock.
6.Compatible with FASTER VF Series.GROMELLE Q-9000 Series.



ISO 5676 Close Type Hydraulic Quick Coupling Carbon Steel Material 3000PSI 0

PARTNO. T HEX1 HEX2 ¢D L LS LP
CB-S4S-4MG G1/2 27 32 44 88 55.5 48




ISO 5676 Close Type Hydraulic Quick Coupling Carbon Steel Material 3000PSI 1
